Specification
| TYPE | DESCRIPTION |
| Mfr | Texas Instruments |
| Series | NexFET™ |

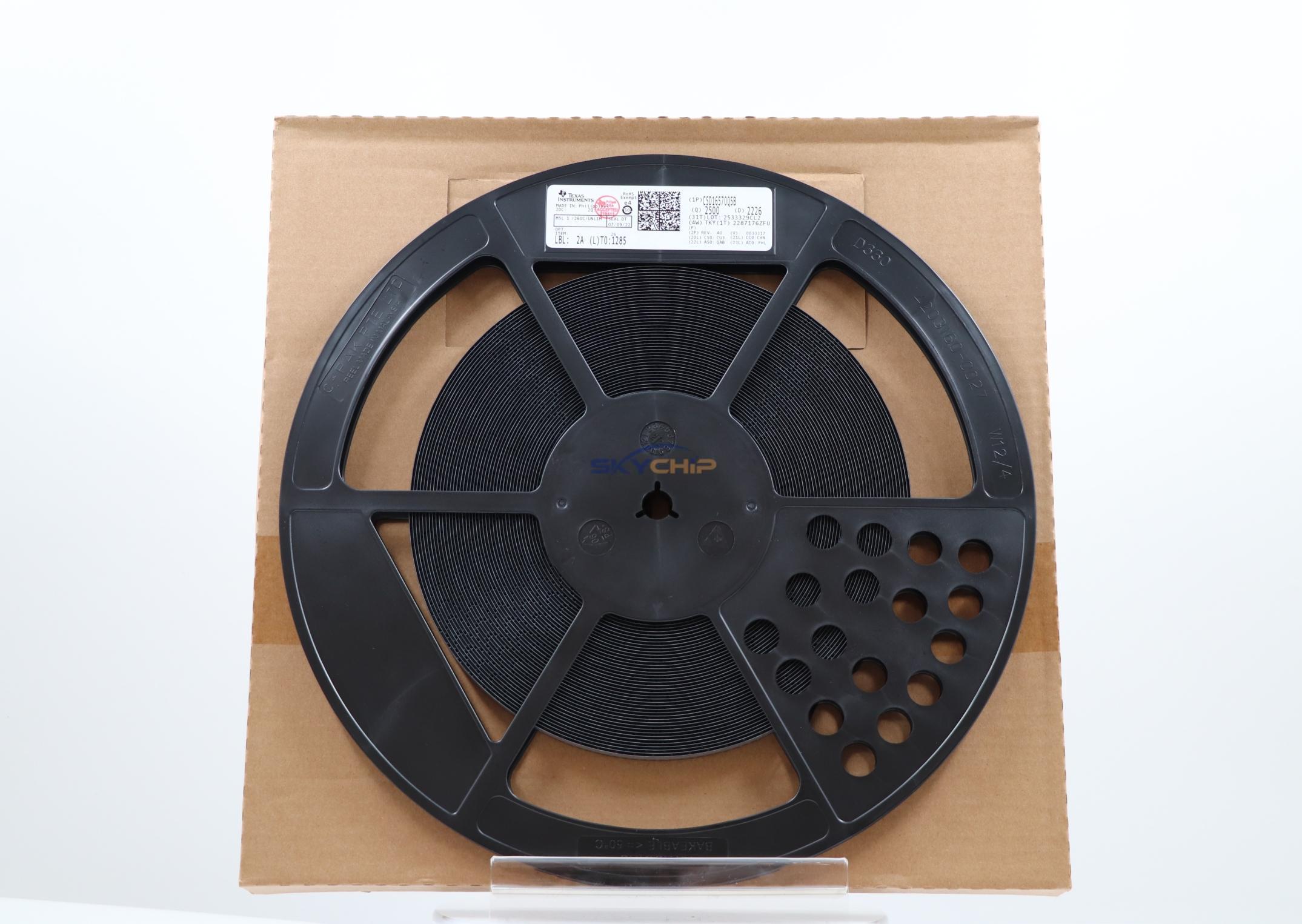

| Package | Tape & Reel (TR) |
| Product Status | ACTIVE |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 100A (Ta) |
| Rds On (Max) @ Id, Vgs | 0.59mOhm @ 50A, 10V |
| Power Dissipation (Max) | 3.2W (Ta), 195W (Tc) |
| Vgs(th) (Max) @ Id | 1.9V @ 250µA |
| Supplier Device Package | 8-VSON-CLIP (5x6) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 25 V |
| Gate Charge (Qg) (Max) @ Vgs | 250 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 14000 pF @ 12 V |
